Description of the AskCody API for integrating ERP systems with the Meeting Services module
This is part of the meeting management service in the AskCody Portal. The AskCody Meeting Services API is accessed using the base URL https://api.onaskcody.com/meeting
All data is in JSON format using the application/json Media Type.
In order to access the API, you need to specify an API key and an API version using HTTP headers:
| Header | Example Value |
| X-AskCody-API-Key | qRniOJFwlcWC-_16pdSFVtH-I5BgPTvhLBxkoREWNOHRaQbILNIrX_MyvquSZo5V |
| X-AskCody-API-Version | 1 |
Available endpoints
The Meeting Services API currently has three endpoints:
| Name | Description | Method | Path | Parameters |
| Unsettled Deliveries | Returns a list of unsettled deliveries. | GET | /deliveries/unsettled |
startTime: Only return deliveries delivered after this time. Optional. endTime: Only return deliveries delivered before this time. Optional. |
| Delivery | Returns the delivery with the given ID. | GET | /deliveries/<id> | None |
| Settle Delivery | Settles the delivery with the given ID. | POST | /deliveries/<id>/settle | externalId: External ID to associate with the delivery. Optional. |
Parameter formats
All "id" parameters are integers / whole numbers.
The parameters "startTime" and "endTime" are DateTime formats and should follow the ISO8601 standard. The following formats are valid:
2019-02-22T10:05:04+00:00
2019-02-22T10:05:04Z
20190222T100504Z
Caution: Sending a GET request requires the data to be URL encoded, because characters like "+" are not supported, and will be filtered away - if this happens the response will simply be empty, but the request will be allowed.
Additionally, the time can be omitted from the parameter, so you only specify the date:
2019-02-22
Caution: Only specifying the Date is implicitly added 00:00:00 as the time format, so if you try to get a single day's deliveries, for example, February 22nd use the following format:
startTime: 2019-02-22
endTime: 2019-02-23
Request examples
https://api.onaskcody.com/meeting/deliveries/unsettled?startTime=2019-02-14T08:00:00%2B0000&endTime=2019-02-14T11:00:00%2B0000
https://api.onaskcody.com/meeting/deliveries/unsettled?startTime=2019-02-14T08:00:00Z&endTime=2019-02-14T11:00:00Z
https://api.onaskcody.com/meeting/deliveries/unsettled?startTime=2019-02-14&endTime=2019-02-15

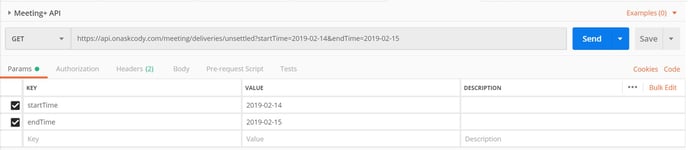

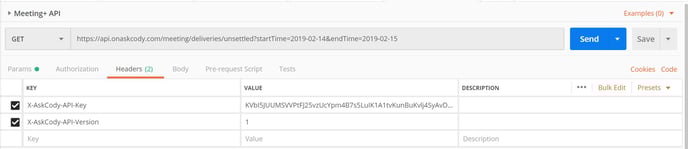

Running a sample request in Postman
Postman can be a great tool for testing API requests. A simple GET request could be done as below:
Response data format
Sample delivery in JSON format looks like this:
Delivery JSON
{
"id": 1,
"deliverAt": "1970-01-01T00:00:00+0000",
"costCenter": "1234",
"totalPrice": "EUR 100.00",
"status": "completed",
"externalId": null,
"settledAt": null,
"settledBy": null,
"externalParticipants": "",
"extensionAttributes": {
"additionalCostCenter": "DK421337",
"internalAttendees": "1",
"externalAttendees": "0"
},
"meeting": {
"id": "BAAAAIIA4AB0xbcQGoLgCAAAAABO8nVvNd7PAQAAAAAAAAAAEAAAAHdxiGFkA01Dl0brT6qlhE4=",
"startTime": "2016-05-31T13:00:00+0000",
"endTime": "2016-05-31T14:00:00+0000",
"subject": "Test meeting for API",
"organizerName": "Filip S. Adamsen",
"organizerAddress": "fsa@askcody.dk",
"location": "Development"
},
"orderer": {
"name": "Filip S. Adamsen",
"email": "fsa@askcody.dk",
"attributes": [
"location": "Aalborg",
"personalCostCenter": "DK133742"
]
}
}
Postman collection
Attached are examples available as a Postman collection.
